P4.S2.CD-UA/UD@400-750.TF@700_4xHYF15_VM100 EI120

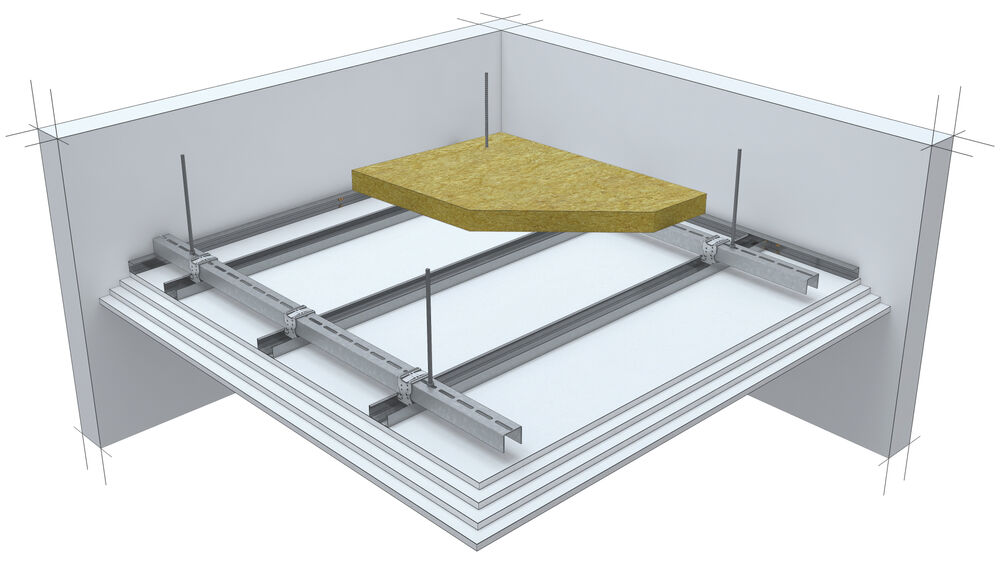

Suspended ceiling with quadruple-layer cladding on UA/CD double profile structure, mounted with threaded rods.
Further Information
Framing centres:
750 mm
Secondary framing centres:
400 mm
Board:
Nida Hydroflam 15
Number of layers:
4
Main framework insulation:
Mineralwool
Insulation thickness:
100 mm
Insulation density:
15 kg/m³
Weight:
65,3 kg/m²
Fire resistance:
120 min
Rw:
71 dB
Plenum:
3000 mm
Direction of fire stress:
b→a
Performance:
Fire resistance, Moisture resistance, Noise reduction
Framework:
double
Fixing type:
Threaded rod
Load bearing:
0,3 kN/m²
Total system load:
95,3 Kg/m²
