P2.S1.CD/UD@400.Br@1000_FL12.5+HYF12.5_VM100 EI45

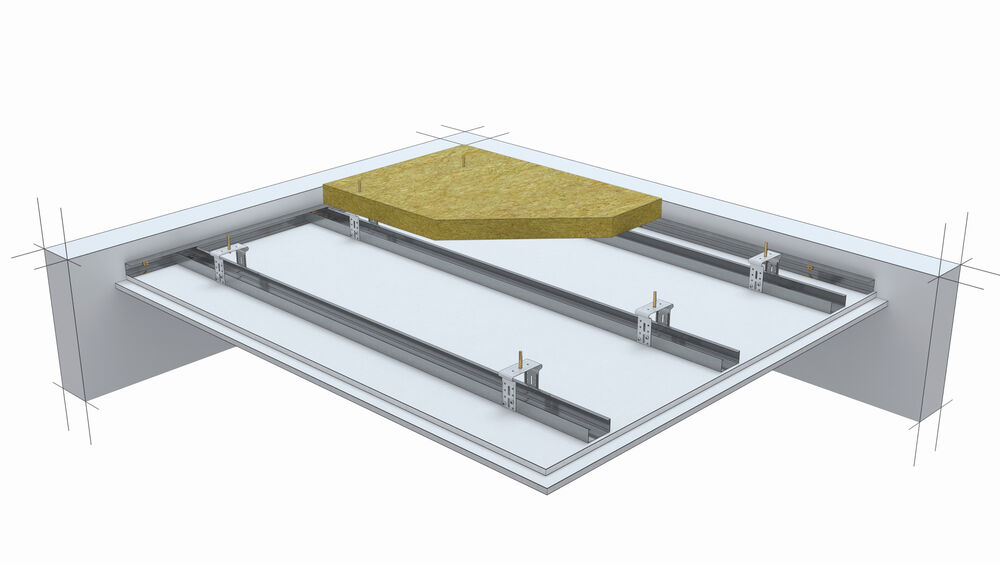

Suspended ceiling with double-layer cladding on CD simple profile structure, mounted with adjustable brackets.
Further Information
Framing centres:
400 mm
Board:
Nida Flam 12.5, Nida Hydroflam 12.5
Number of layers:
2
Main framework insulation:
Mineralwool
Insulation thickness:
100 mm
Insulation density:
15 kg/m³
Weight:
28,1 kg/m²
Fire resistance:
45 min
Rw:
68 dB
Plenum:
120 mm
Direction of fire stress:
b→a
Performance:
Fire resistance, Moisture resistance, Noise reduction
Framework:
single
Fixing type:
Adjustable bracket
Load bearing:
0,075 kN/m²
Total system load:
35,6 Kg/m²
