P4.S2.CD-UA/UD@400-750.TF@700_2xFL12.5+FL15+HYF15 EI120

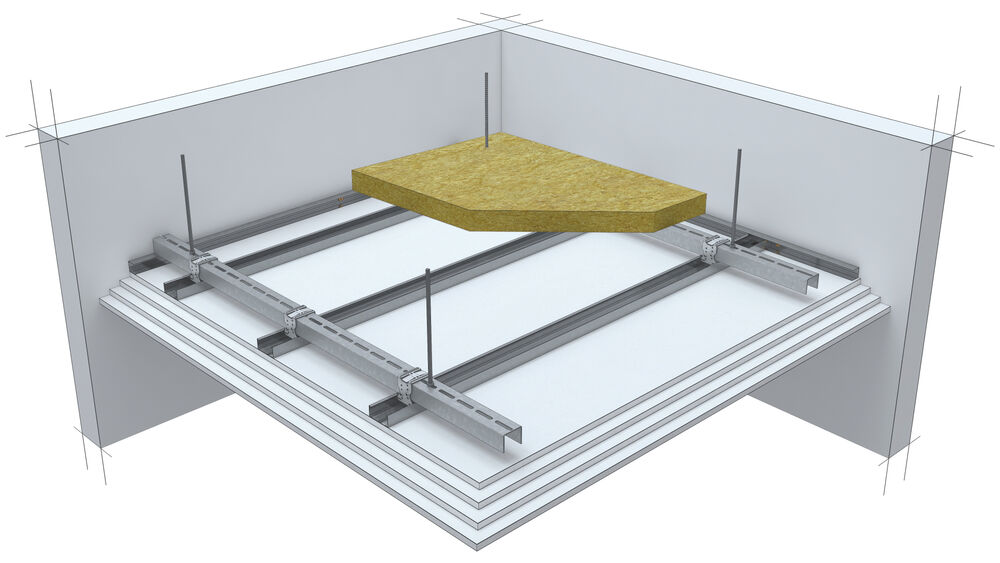

Suspended ceiling with quadruple-layer cladding on UA/CD double profile structure, mounted with threaded rods.

Framing centres: 750 mm

Secondary framing centres: 400 mm

Board: Nida Flam 12.5, Nida Flam 15, Nida Hydroflam 15

Number of layers: 4

Main framework insulation: None

Weight: 59,8 kg/m²

Fire resistance: 120 min

Rw: 70 dB

Plenum: 3000 mm

Direction of fire stress: b→a

Performance: Fire resistance, Moisture resistance, Noise reduction

Framework: double

Fixing type: Threaded rod

Load bearing: 0,3 kN/m²

Total system load: 89,8 Kg/m²
