P2.S2.CD-CD/UD@400-900.T@500_FL12.5+FL15_VM50 EI60

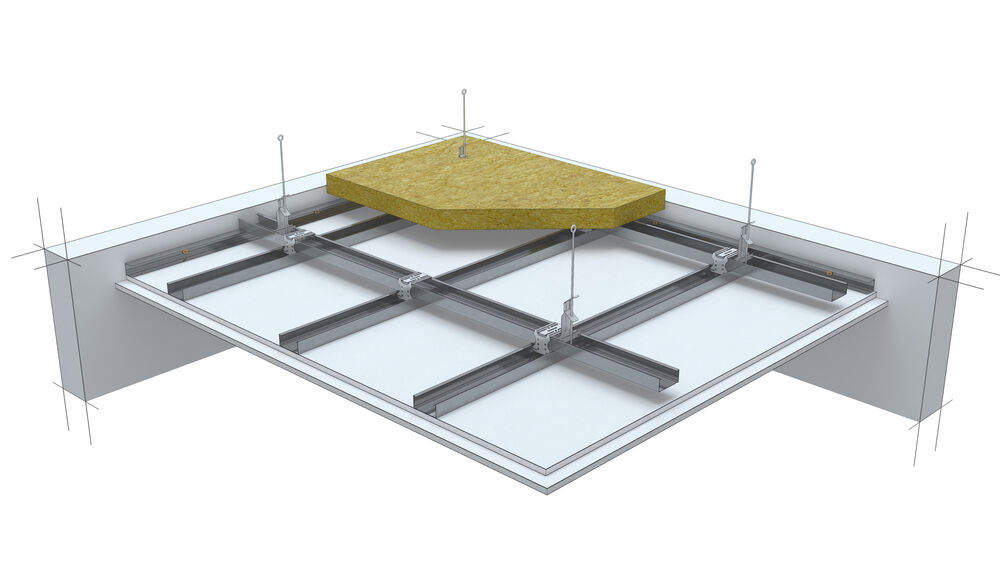

Suspended ceiling with double-layer cladding on CD/CD double profile structure, mounted with tie rods.
Further Information
Framing centres:
900 mm
Secondary framing centres:
400 mm
Board:
Nida Flam 12.5, Nida Flam 15
Insulation thickness:
50 mm
Insulation density:
10 kg/m³
Weight:
30,8 kg/m²
Fire resistance:
60 min
Rw:
70 dB
Plenum:
3000 mm
Fixing type:
Tie rod
Load bearing:
0,075 kN/m²
Total system load:
38,3 Kg/m²
