SMART A 9.5

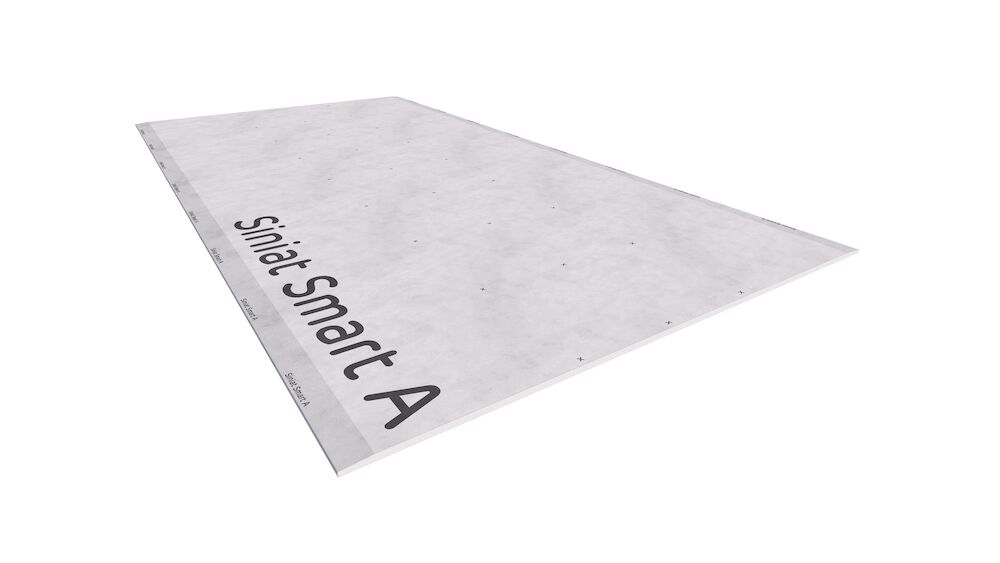

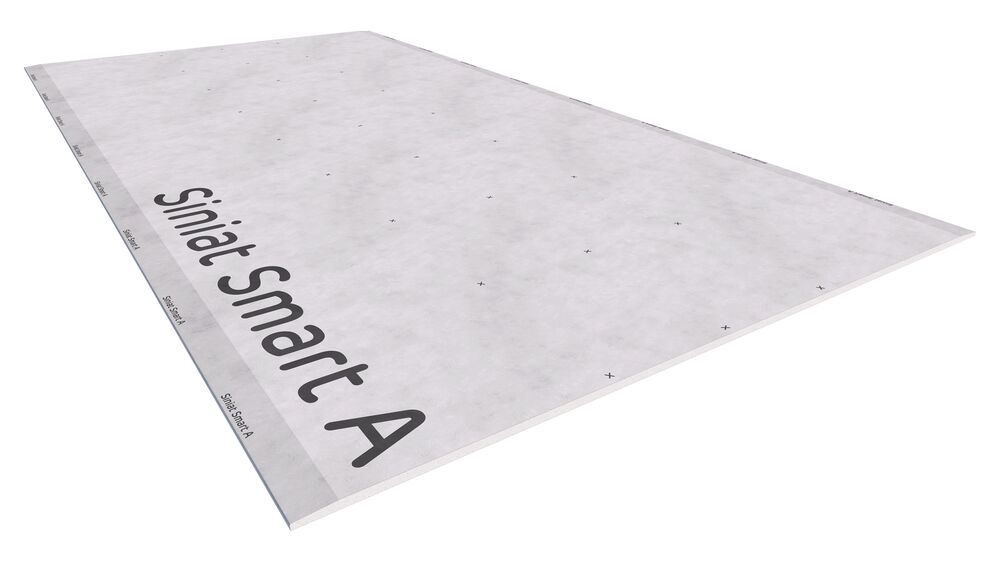

NIDA Smart 9.5 mm is a lightweight additivated gypsum board, which ensures superior handling and increased working speed. The surfaces and longitudinal edges are covered with a special cardboard. The upper face is white.
Further information
Applications:
Quick applications for partitioning systems:
- existing wall lining
- ceilings
- systems without special requirements in spaces with maximum 60% humidity.
Reaction to fire:
A2-s1,d0
Thermal conductivity:
0.2
Longitudinal breaking load:
400 N
Transversal breaking load:
160 N
Density:
620 kg/m³
Weight Per SQM:
5,9 kg/m²
Thickness:
9,5 mm
Width:
1200 mm
Board Type:
A
Handling and storage:
- the boards should be transported with their lateral edge placed vertically, or using special transportation means (carts, forklifts, trucks);
- the boards should be stored on pallets or wood spacers, placed at an equal distance of approx. 50 cm. The packs should be stored on dry, smooth floors, so as to prevent damages (deformation or breaking);
- the boards should be stored and installed inside, at temperatures between 5-40°C, in rooms with relative humidity of maximum 60%;
- the boards which get wet during storage should be completely dried prior to installation. In order to dry, the boards should be placed vertically on a level floor, so as to allow air to flow freely between them;
- the boards should not be stored under direct sunlight for long periods of times;
- when storing the boards, take into account the loadbearing capacity of the floor. E.g. 92 SMART A boards with the thickness of 9,5 mm place a weight of about 543 kg/m² on the floor.
