Nida FLAM 18

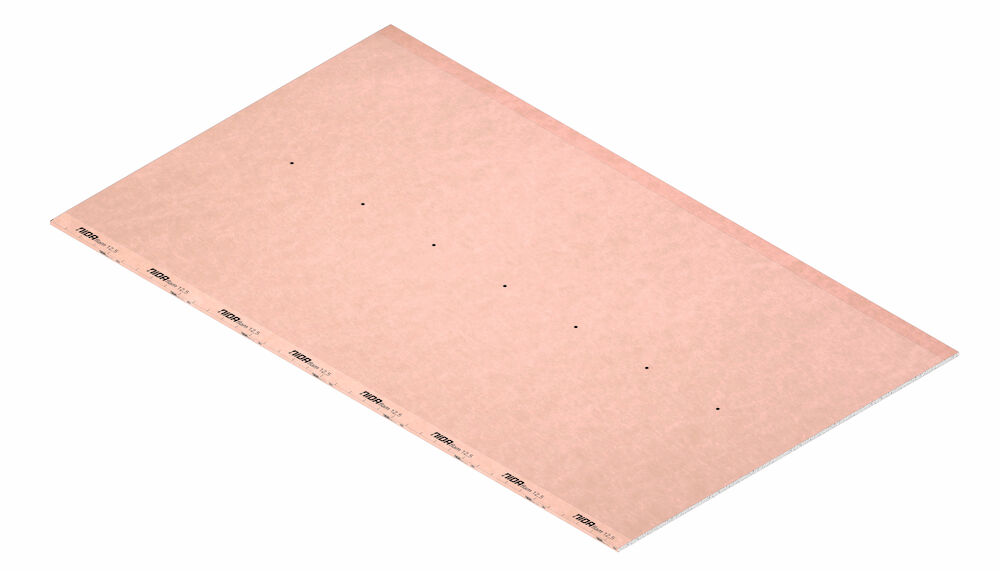

NIDA Flam 18 mm is a plasterboard with a gypsum core and fibreglass reinforcement whose surfaces and longitudinal edges are covered with a special multi-layered cardboard. The board, with a controlled density of at least 800 kg/m3, features improved core cohesion at high temperatures. The upper face is pink.

Prásini yipsosanída anthektikí stin igrasía
Prásini yipsosanída anthektikí stin igrasía

Further information

Applications:

  • The NIDA Flam 18 mm boards are part of the one-layer fire-resistant plasterboard systems (linings, ceilings, wall, shaft-walls
  • Provides fire resistance where required by fire regulations.

Benefits:

  • Fire protection
  • Easy to cut, clamp and handle
  • Technical performance
  • Durability
Reaction to fire: A2-s1,d0
Thermal conductivity: 0.25
Longitudinal breaking load: 1044 N
Transversal breaking load: 432 N
Density: 810 kg/m³
Weight Per SQM: 14,65 kg/m²
Thickness: 18 mm
Width: 1200 mm
Board Type: DFR

Handling and storage:

  • the boards should be transported with their lateral edge placed vertically, or using special transportation means (carts, forklifts, trucks);
  • the boards should be stored on pallets or wood spacers, placed at an equal distance of approx. 50 cm. The packs should be stored on dry, smooth floors, so as to prevent damages (deformation or breaking);
  • the boards should be stored and installed inside, at temperatures between 5-40°C, in rooms with relative humidity of maximum 60%;
  • the boards which get wet during storage should be completely dried prior to installation. In order to dry, the boards should be placed vertically on a level floor, so as to allow air to flow freely between them;
  • the boards should not be stored under direct sunlight for long periods of times;
  • when storing the boards, take into account the loadbearing capacity of the floor. E.g. 40 Nida FLAM boards with the thickness of 18 mm place a weight of about 586 kg/m² on the floor.
